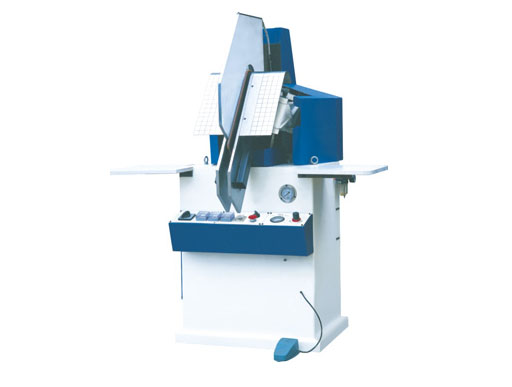

XCXYB-2 upper curve forming machine
read:16336
| Technical Data: |
| |
|
Dimension |
L1000×W1000×H15100 mm |
|
Power |
0.75 kw |
|
Pneumatic pressure |
6 kgf/cm2 |
|
N·W |
280 kg |
|
Electrothermal power |
3 kw |
|
Capability |
1500 pair/8hr. | |
| |
| |
| |
| Application: |
| |
| Application for extending and curve forming of upper and of shoes and boots,and is provided with steam wetting mechanism. |
| |
| |
| |
| Features: |
| |
- The machine adopts oil and mixture system.The pull-down blade adopts oil pressure system(speed is stable and adjustable,which is suitable for the stretching of various leathers).
- The leather is stretched directly and becomes ideal warping shape after heated ,which makes the upper never be deformed.
- Simple operation.
- Upper of 14 inch boots can be formed.
|
